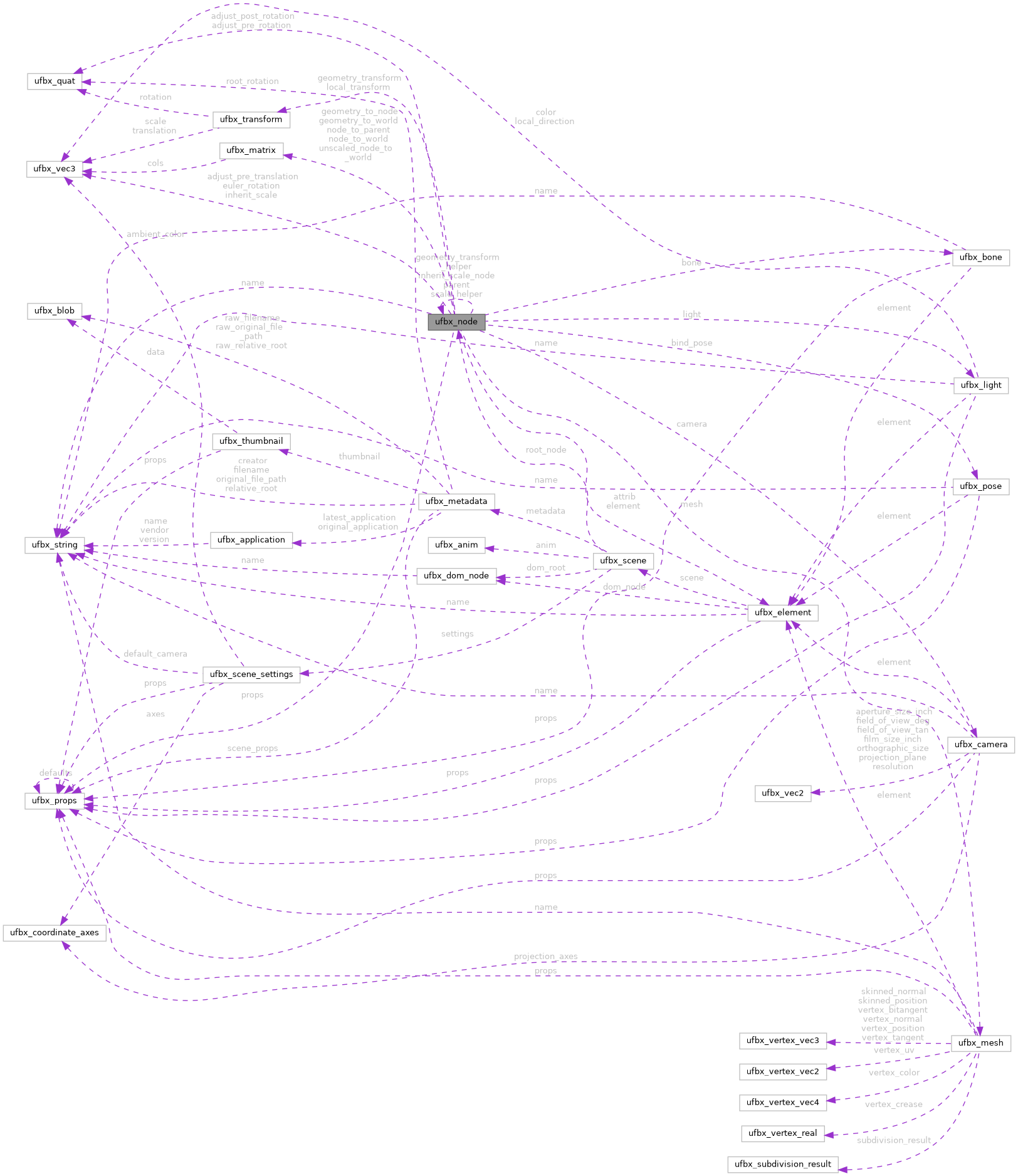

Collaboration diagram for ufbx_node:
Data Fields | ||
| union { | ||
| ufbx_element element | ||
| struct { | ||
| ufbx_string name | ||
| ufbx_props props | ||
| uint32_t element_id | ||
| uint32_t typed_id | ||
| } | ||
| }; | ||
| ufbx_nullable ufbx_node * | parent | |
| ufbx_node_list | children | |
| ufbx_nullable ufbx_mesh * | mesh | |
| ufbx_nullable ufbx_light * | light | |
| ufbx_nullable ufbx_camera * | camera | |
| ufbx_nullable ufbx_bone * | bone | |
| ufbx_nullable ufbx_element * | attrib | |
| ufbx_nullable ufbx_node * | geometry_transform_helper | |
| ufbx_nullable ufbx_node * | scale_helper | |
| ufbx_element_type | attrib_type | |
| ufbx_element_list | all_attribs | |
| ufbx_inherit_mode | inherit_mode | |
| ufbx_inherit_mode | original_inherit_mode | |
| ufbx_transform | local_transform | |
| ufbx_transform | geometry_transform | |
| ufbx_vec3 | inherit_scale | |
| ufbx_nullable ufbx_node * | inherit_scale_node | |
| ufbx_rotation_order | rotation_order | |
| ufbx_vec3 | euler_rotation | |
| ufbx_matrix | node_to_parent | |
| ufbx_matrix | node_to_world | |
| ufbx_matrix | geometry_to_node | |
| ufbx_matrix | geometry_to_world | |
| ufbx_matrix | unscaled_node_to_world | |
| ufbx_vec3 | adjust_pre_translation | |
| ufbx_quat | adjust_pre_rotation | |
| ufbx_real | adjust_pre_scale | |
| ufbx_quat | adjust_post_rotation | |
| ufbx_real | adjust_post_scale | |
| ufbx_real | adjust_translation_scale | |
| ufbx_mirror_axis | adjust_mirror_axis | |
| ufbx_material_list | materials | |
| ufbx_nullable ufbx_pose * | bind_pose | |
| bool | visible | |
| bool | is_root | |
| bool | has_geometry_transform | |
| bool | has_adjust_transform | |
| bool | has_root_adjust_transform | |
| bool | is_geometry_transform_helper | |
| bool | is_scale_helper | |
| bool | is_scale_compensate_parent | |
| uint32_t | node_depth | |
The documentation for this struct was generated from the following file:
- include/mgdl/ufbx/ufbx.h
