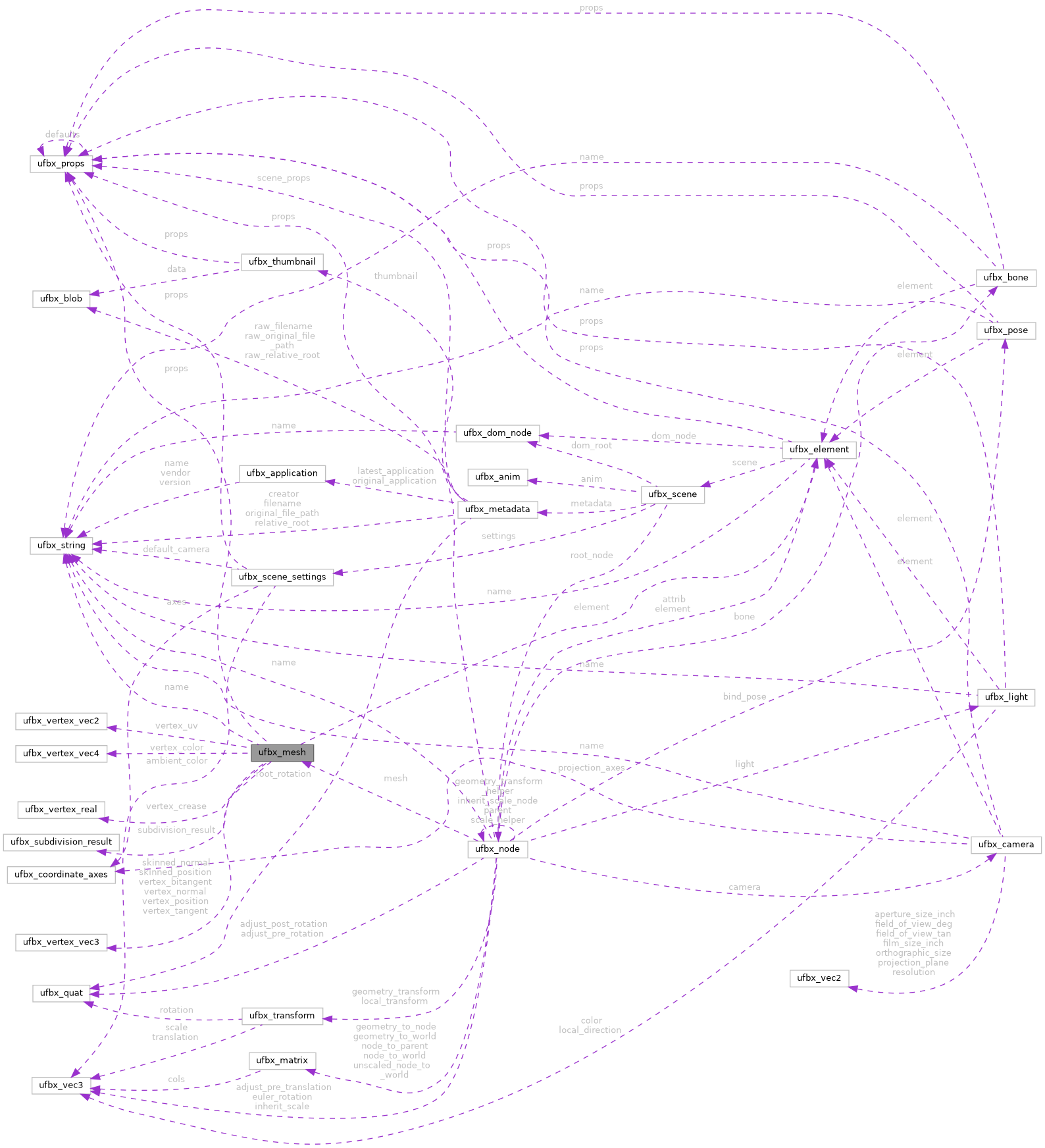

Collaboration diagram for ufbx_mesh:
Data Fields | ||
| union { | ||
| ufbx_element element | ||
| struct { | ||
| ufbx_string name | ||
| ufbx_props props | ||
| uint32_t element_id | ||
| uint32_t typed_id | ||
| ufbx_node_list instances | ||
| } | ||
| }; | ||
| size_t | num_vertices | |
| size_t | num_indices | |
| size_t | num_faces | |
| size_t | num_triangles | |
| size_t | num_edges | |
| size_t | max_face_triangles | |
| size_t | num_empty_faces | |
| size_t | num_point_faces | |
| size_t | num_line_faces | |
| ufbx_face_list | faces | |
| ufbx_bool_list | face_smoothing | |
| ufbx_uint32_list | face_material | |
| ufbx_uint32_list | face_group | |
| ufbx_bool_list | face_hole | |
| ufbx_edge_list | edges | |
| ufbx_bool_list | edge_smoothing | |
| ufbx_real_list | edge_crease | |
| ufbx_bool_list | edge_visibility | |
| ufbx_uint32_list | vertex_indices | |
| ufbx_vec3_list | vertices | |
| ufbx_uint32_list | vertex_first_index | |
| ufbx_vertex_vec3 | vertex_position | |
| ufbx_vertex_vec3 | vertex_normal | |
| ufbx_vertex_vec2 | vertex_uv | |
| ufbx_vertex_vec3 | vertex_tangent | |
| ufbx_vertex_vec3 | vertex_bitangent | |
| ufbx_vertex_vec4 | vertex_color | |
| ufbx_vertex_real | vertex_crease | |
| ufbx_uv_set_list | uv_sets | |
| ufbx_color_set_list | color_sets | |
| ufbx_material_list | materials | |
| ufbx_face_group_list | face_groups | |
| ufbx_mesh_part_list | material_parts | |
| ufbx_mesh_part_list | face_group_parts | |
| ufbx_uint32_list | material_part_usage_order | |
| bool | skinned_is_local | |
| ufbx_vertex_vec3 | skinned_position | |
| ufbx_vertex_vec3 | skinned_normal | |
| ufbx_skin_deformer_list | skin_deformers | |
| ufbx_blend_deformer_list | blend_deformers | |
| ufbx_cache_deformer_list | cache_deformers | |
| ufbx_element_list | all_deformers | |
| uint32_t | subdivision_preview_levels | |
| uint32_t | subdivision_render_levels | |
| ufbx_subdivision_display_mode | subdivision_display_mode | |
| ufbx_subdivision_boundary | subdivision_boundary | |
| ufbx_subdivision_boundary | subdivision_uv_boundary | |
| bool | reversed_winding | |
| bool | generated_normals | |
| bool | subdivision_evaluated | |
| ufbx_nullable ufbx_subdivision_result * | subdivision_result | |
| bool | from_tessellated_nurbs | |
The documentation for this struct was generated from the following file:
- include/mgdl/ufbx/ufbx.h
