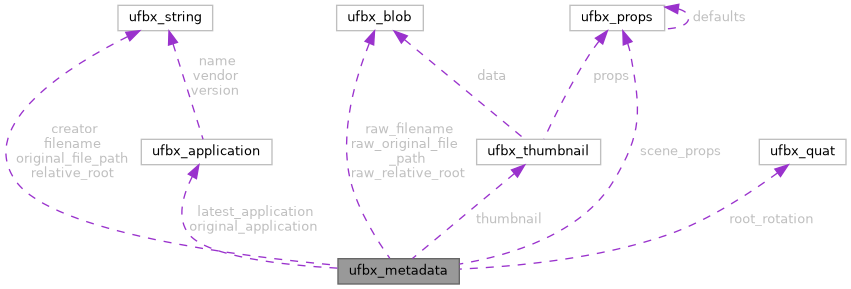

Collaboration diagram for ufbx_metadata:
Data Fields | |
| ufbx_warning_list | warnings |
| bool | ascii |
| uint32_t | version |
| ufbx_file_format | file_format |
| bool | may_contain_no_index |
| bool | may_contain_missing_vertex_position |
| bool | may_contain_broken_elements |
| bool | is_unsafe |
| bool | has_warning [UFBX_WARNING_TYPE_COUNT] |
| ufbx_string | creator |
| bool | big_endian |
| ufbx_string | filename |
| ufbx_string | relative_root |
| ufbx_blob | raw_filename |
| ufbx_blob | raw_relative_root |
| ufbx_exporter | exporter |
| uint32_t | exporter_version |
| ufbx_props | scene_props |
| ufbx_application | original_application |
| ufbx_application | latest_application |
| ufbx_thumbnail | thumbnail |
| bool | geometry_ignored |
| bool | animation_ignored |
| bool | embedded_ignored |
| size_t | max_face_triangles |
| size_t | result_memory_used |
| size_t | temp_memory_used |
| size_t | result_allocs |
| size_t | temp_allocs |
| size_t | element_buffer_size |
| size_t | num_shader_textures |
| ufbx_real | bone_prop_size_unit |
| bool | bone_prop_limb_length_relative |
| ufbx_real | ortho_size_unit |
| int64_t | ktime_second |
| ufbx_string | original_file_path |
| ufbx_blob | raw_original_file_path |
| ufbx_space_conversion | space_conversion |
| ufbx_quat | root_rotation |
| ufbx_real | root_scale |
| ufbx_mirror_axis | mirror_axis |
| ufbx_real | geometry_scale |
The documentation for this struct was generated from the following file:
- include/mgdl/ufbx/ufbx.h
